340nm narrow bandpass filter,FWHM:10nm

Price:$100(FOB Shanghai)

Store:1 pcs get free sample

Size:60*60*2.2mm

CWL:340nm

FWHM:10nm

Type: narrow bandpass filter

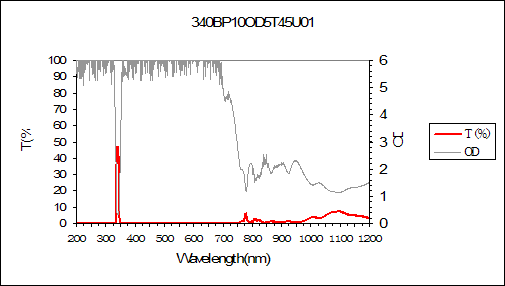

curve of 340nm narrow bandpass filter

Specifications:

Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã
Center wavelength:340 nm
FWHM:10 nm
Tpeak: T>45% at 340 nm
Blocking: OD5-U                                    What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B02-1-2

Note: Other dimension and specification are available upon request.

Knowledge & Tips

Customer feedback:

%respond%

Tips:

Mega-9 supplies advanced narrow bandpass filter in large volumes or single-piece quantities for all requirements of spectral light measurement and control.
12. The optical filter of claim 1, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 13. The optical filter of claim 1, wherein one of the first and second reflective filter functions comprises one of a Gaussian, rectangular and ramp shape. 14. The optical filter of claim 1, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 15. The optical filter of claim 1, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength. 12. The optical filter of claim 1, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 13. The optical filter of claim 1, wherein one of the first and second reflective filter functions comprises one of a Gaussian, rectangular and ramp shape. 14. The optical filter of claim 1, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 15. The optical filter of claim 1, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength.
.
