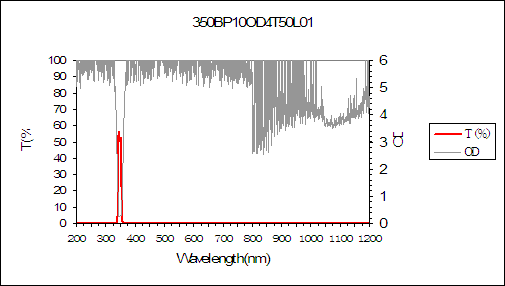

350nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:9 pcs
Size:Φ24*5.1mm
CWL:350nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã
Center wavelength:350 nm
FWHM:10 nm
Tpeak: T>50% at 350 nm
Blocking: OD4-L What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B04-5-1
Note: Other dimension and specification are available upon request.
