    355nm narrow bandpass filter,FWHM:10nm

    Price:$100(FOB Shanghai)

    Store:1 pcs get free sample

    Size:Ø24*1.3mm

    CWL:355nm

    FWHM:10nm

    Type: narrow bandpass filter

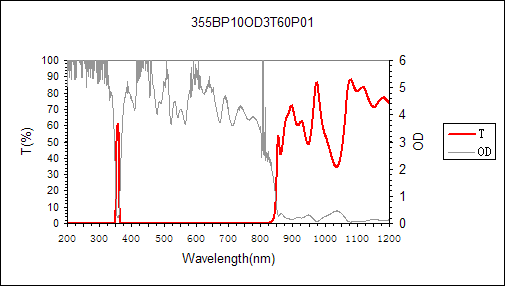

    curve of 355nm narrow bandpass filter

    Specifications:

    Substrate material: Float glass
    Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
    Angle of incidence:0¡ã
    Center wavelength:355 nm
    FWHM:10 nm
    Tpeak: T>60% at 355 nm
    Blocking: OD3-P                                    What is OD?
    Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
    Other: Customed,Store id: B04-1-2

    Note: Other dimension and specification are available upon request.

    Knowledge & Tips

    Customer feedback:

    %respond%

    Tips:

    Mega-9 Optical supplies advanced narrow bandpass filter with high quality and fast delivery.
    24. The optical filter of claim 22, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 25. The optical filter of claim 22, wherein one of the first and second filter functions comprises one of a Gaussian, rectangular and ramp shape. 26. The optical filter of claim 22, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 27. The optical filter of claim 22, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength. 28. The optical filter of claim 22, wherein at least one of the first and second reflective elements includes a Bragg grating. 12. The optical filter of claim 1, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 13. The optical filter of claim 1, wherein one of the first and second reflective filter functions comprises one of a Gaussian, rectangular and ramp shape. 14. The optical filter of claim 1, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 15. The optical filter of claim 1, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength.
    .
