Mega-9
Advanced optical narrow bandpass
filter and beam splitter cubes
360nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:1 pcs
Size:13*13*4.2mm
CWL:360nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0 degree

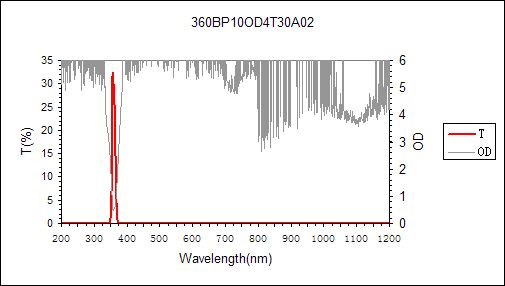

Center wavelength:360 nm
FWHM:10 nm
Tpeak: T>30% at 360 nm
Blocking: OD4-A What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: 13100600032/46-1
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 Optical supplies advanced narrow bandpass filter with high quality and fast delivery.
16. The optical filter of claim 1, wherein at least one of the first and second optical elements have an outer cladding and an inner core disposed therein, wherein the at least one of the first and second reflective element comprises a grating disposed in a longitudinal direction of the inner core. 17. The optical filter of claim 16, wherein the at least one of the first and second optical elements comprises: an optical fiber, having a reflective element written therein; and a tube, having the optical fiber and the reflective element encased therein along a longitudinal axis of the tube, the tube being fused to at least a portion of the fiber. 18. The optical filter of claim 16, wherein the at least one of the first and second optical elements is an optical waveguide having an outer transverse dimension of at least 0.3 mm. 19. The optical filter of claim 16, wherein the at least one of the first and second optical elements is an optical fiber. 20. The optical filter of claim 1 further includes a straining device for tensioning axially the first optical element to tune the first reflective element, wherein the first reflective element is disposed along an axial direction of the first optical element. 12. The optical filter of claim 1, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 13. The optical filter of claim 1, wherein one of the first and second reflective filter functions comprises one of a Gaussian, rectangular and ramp shape. 14. The optical filter of claim 1, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 15. The optical filter of claim 1, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength.
.
