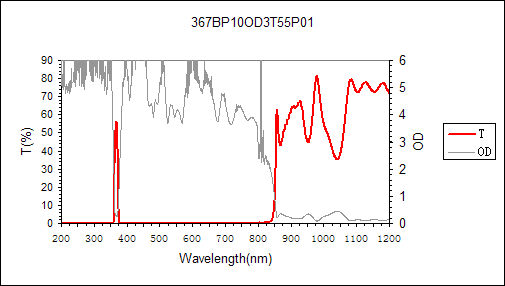

367nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:3 pcs
Size:Φ24*1.2mm
CWL:367nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã
Center wavelength:367 nm
FWHM:10 nm
Tpeak: T>55% at 367 nm
Blocking: OD3-P What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B04-1-2
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 Optical supplies advanced narrow bandpass filter,high quality,fast delivery,tel:86-21-57784688.
1. An optical filter comprising: a first optical element including a first reflective element for receiving light and reflecting a first wavelength band of the light centered at a first reflective wavelength, the first reflective element characterized by a first reflective filter function; and a second optical element, optically connected to the first a second optical element to receive the reflected first wavelength band of the light, including a second reflective element for reflecting a second wavelength band of the light centered at a second reflection wavelength, the second reflective element characterized by a second reflective filter function, whereby at least one of the first reflective filter function and the second reflective filter function is not substantially flat over a substantial portion of the respective first or second reflective filter function, and the first wavelength band and the second wavelength band overlap spectrally. 1. An optical filter comprising: a first optical element including a first reflective element for receiving light and reflecting a first wavelength band of the light centered at a first reflective wavelength, the first reflective element characterized by a first reflective filter function; and a second optical element, optically connected to the first a second optical element to receive the reflected first wavelength band of the light, including a second reflective element for reflecting a second wavelength band of the light centered at a second reflection wavelength, the second reflective element characterized by a second reflective filter function, whereby at least one of the first reflective filter function and the second reflective filter function is not substantially flat over a substantial portion of the respective first or second reflective filter function, and the first wavelength band and the second wavelength band overlap spectrally.
.
