368nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:2 pcs
Size:Φ10*3mm
CWL:368nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0��
Center wavelength:368 nm
FWHM:10 nm

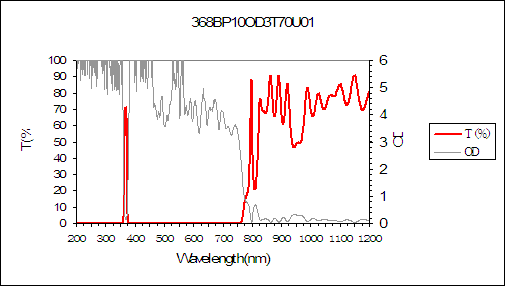

Tpeak: T>70% at 368 nm
Blocking: OD3-200~700nm What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B14-01-45
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 Optical supplies advanced narrow bandpass filter,high quality,fast delivery,tel:86-21-57784688.
5. The optical filter of claim 4, wherein the displacement sensor includes a capacitance sensor coupled to the first optical element for measuring the change in the capacitance that depends on the change in the displacement of the first optical element. 6. The optical filter of claim 1, wherein both of the first and second optical elements is tunable to change each of the respective first and second wavelengths. 7. The optical filter of claim 6 further comprising: a first compressing device for compressing axially the first element to tune the first reflective element, wherein the first reflective element is written in the longitudinal direction in the first optical element; and a second compressing device for compressing axially the second optical element to tune the second reflective element, wherein the second reflective element is written in the direction in the second optical element. 5. The optical filter of claim 4, wherein the displacement sensor includes a capacitance sensor coupled to the first optical element for measuring the change in the capacitance that depends on the change in the displacement of the first optical element. 6. The optical filter of claim 1, wherein both of the first and second optical elements is tunable to change each of the respective first and second wavelengths. 7. The optical filter of claim 6 further comprising: a first compressing device for compressing axially the first element to tune the first reflective element, wherein the first reflective element is written in the longitudinal direction in the first optical element; and a second compressing device for compressing axially the second optical element to tune the second reflective element, wherein the second reflective element is written in the direction in the second optical element.
.
