370nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:2 pcs
Size:Φ8*3mm
CWL:370nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0��
Center wavelength:370 nm
FWHM:10 nm

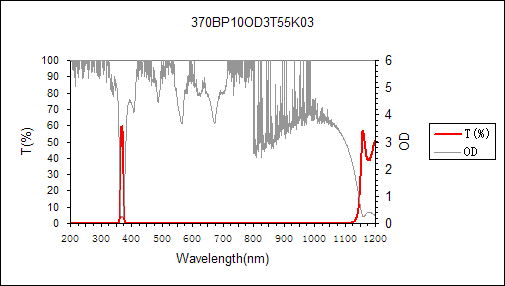

Tpeak: T>55% at 370 nm
Blocking: OD3-200~1100nm What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B14-01-49
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 supplies advanced narrow bandpass filter in large volumes or single-piece quantities for all requirements of spectral light measurement and control.
21. The optical filter of claim 1 further includes a heating element for varying the temperature of the first optical element to tune the first reflective element to reflect the selected first wavelength band. 22. The optical filter of claim 1, wherein the at least one of the first and second optical waveguides has outer dimensions along perpendicular axial and transverse directions, a first portion of the at least one of the first and second optical waveguides having an outer dimension being at least 0.3 mm along said transverse direction, at least a portion of the first portion having a transverse cross-section which is continuous and comprises a substantially homogeneous material; and the at least one of the first and second optical waveguides being axially strain compressed so as to change the at least one of the first and second reflection wavelengths. 23. The optical filter of claim 22, wherein both of the first and second optical waveguides is tunable to change each of the respective first and second reflection wavelengths. 2. The optical filter of claim 1, wherein one of the first and second optical elements is tunable to change the corresponding first or second reflection wavelength. 3. The optical filter of claim 2 further includes a compression device that axially compresses at least one of the first and second optical elements, wherein at least one of the respective first and second reflective elements is disposed along an axial direction of the respective first and second optical elements. 4. The optical filter of claim 2 further includes: a first compressing device for axially compressing at least the first optical element to tune the first reflective element, responsive to a displacement signal, wherein the first reflective element is disposed axially along the first optical element; and a displacement sensor, responsive to the compression of the first optical element, for providing the displacement signal indicative of the change in the displacement of the first optical element.
.
