373nm narrow bandpass filter,FWHM:7nm
Price:$100(FOB Shanghai)
Store:1 pcs
Size:Φ25.4*6mm
CWL:373nm
FWHM:7nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0��
Center wavelength:373 nm
FWHM:7 nm

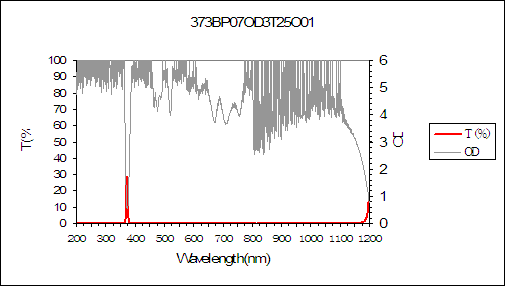

Tpeak: T>25% at 373 nm
Blocking: OD3-200~1150nm What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B14-01-52
Note: Other dimension and specification are available upon request.
