Price:$100(FOB Shanghai)
Size:M30.5*7mm
CWL:375nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã
Center wavelength:375 nm
FWHM:10 nm

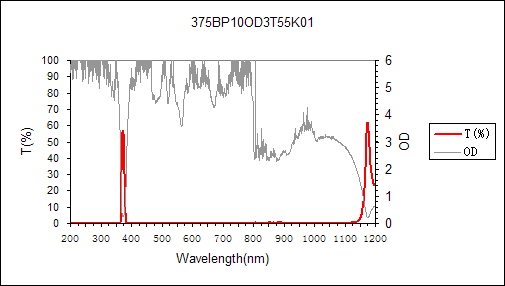

Tpeak: T>55% at 375 nm
Blocking: OD3-K What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B04-5-1
Note: Other dimension and specification are available upon request.
Customer feedback:
%respond%
Tips:
Mega-9 Optical supplies advanced narrow bandpass filter with high quality and fast delivery.
2. The optical filter of claim 1, wherein one of the first and second optical elements is tunable to change the corresponding first or second reflection wavelength. 3. The optical filter of claim 2 further includes a compression device that axially compresses at least one of the first and second optical elements, wherein at least one of the respective first and second reflective elements is disposed along an axial direction of the respective first and second optical elements. 4. The optical filter of claim 2 further includes: a first compressing device for axially compressing at least the first optical element to tune the first reflective element, responsive to a displacement signal, wherein the first reflective element is disposed axially along the first optical element; and a displacement sensor, responsive to the compression of the first optical element, for providing the displacement signal indicative of the change in the displacement of the first optical element. 12. The optical filter of claim 1, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 13. The optical filter of claim 1, wherein one of the first and second reflective filter functions comprises one of a Gaussian, rectangular and ramp shape. 14. The optical filter of claim 1, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 15. The optical filter of claim 1, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength.
.
