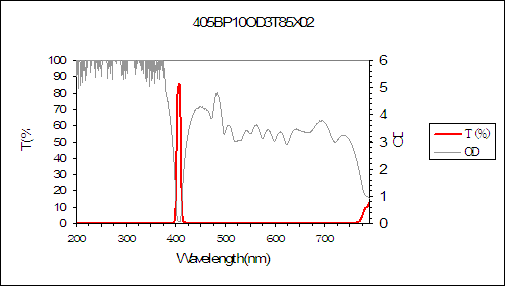

405nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:7 pcs
Size:Φ9.5*1mm
CWL:405nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã
Center wavelength:405 nm
FWHM:10 nm
Tpeak: T>85% at 405 nm
Blocking: OD3-X What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B02-3-5
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 Optical supplies advanced narrow bandpass filter with high quality and fast delivery.
12. The optical filter of claim 1, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 13. The optical filter of claim 1, wherein one of the first and second reflective filter functions comprises one of a Gaussian, rectangular and ramp shape. 14. The optical filter of claim 1, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 15. The optical filter of claim 1, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength. 24. The optical filter of claim 22, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 25. The optical filter of claim 22, wherein one of the first and second filter functions comprises one of a Gaussian, rectangular and ramp shape. 26. The optical filter of claim 22, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 27. The optical filter of claim 22, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength. 28. The optical filter of claim 22, wherein at least one of the first and second reflective elements includes a Bragg grating.
.
