405nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:1 pcs
Size:Φ50*3.3mm
CWL:405nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0��
Center wavelength:405 nm
FWHM:10 nm

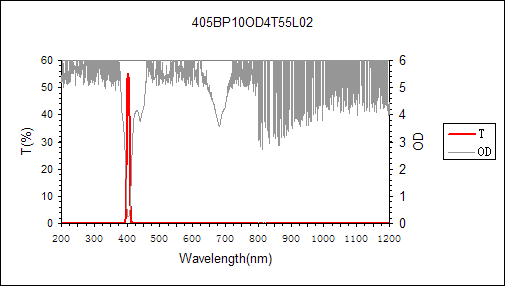

Tpeak: T>55% at 405 nm
Blocking: OD4-200~1200nm What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B15-01-48
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 supplies advanced narrow bandpass filter in large volumes or single-piece quantities for all requirements of spectral light measurement and control.
1. An optical filter comprising: a first optical element including a first reflective element for receiving light and reflecting a first wavelength band of the light centered at a first reflective wavelength, the first reflective element characterized by a first reflective filter function; and a second optical element, optically connected to the first a second optical element to receive the reflected first wavelength band of the light, including a second reflective element for reflecting a second wavelength band of the light centered at a second reflection wavelength, the second reflective element characterized by a second reflective filter function, whereby at least one of the first reflective filter function and the second reflective filter function is not substantially flat over a substantial portion of the respective first or second reflective filter function, and the first wavelength band and the second wavelength band overlap spectrally. 2. The optical filter of claim 1, wherein one of the first and second optical elements is tunable to change the corresponding first or second reflection wavelength. 3. The optical filter of claim 2 further includes a compression device that axially compresses at least one of the first and second optical elements, wherein at least one of the respective first and second reflective elements is disposed along an axial direction of the respective first and second optical elements. 4. The optical filter of claim 2 further includes: a first compressing device for axially compressing at least the first optical element to tune the first reflective element, responsive to a displacement signal, wherein the first reflective element is disposed axially along the first optical element; and a displacement sensor, responsive to the compression of the first optical element, for providing the displacement signal indicative of the change in the displacement of the first optical element.
.
