405nm narrow bandpass filter,FWHM:10nm
Price:$100(FOB Shanghai)
Store:7 pcs
Size:Φ13*3.5mm
CWL:405nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0��

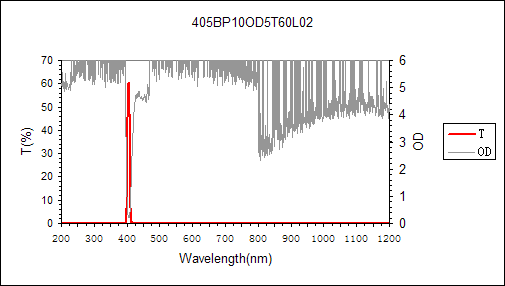

Center wavelength:405 nm
FWHM:10 nm
Tpeak: T>60% at 405 nm
Blocking: OD5-200~1200nm What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B13-01-41
Note: Other dimension and specification are available upon request.
