440nm narrow bandpass filter,FWHM:9nm
Price:$100(FOB Shanghai)
Store:3 pcs
Size:Φ25.4*6mm
CWL:440nm
FWHM:9nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã

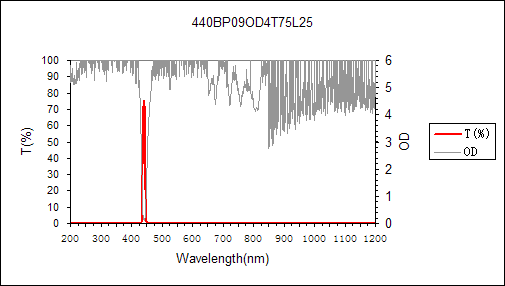

Center wavelength:440 nm
FWHM:9 nm
Tpeak: T>75% at 440 nm
Blocking: OD4-L What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B04-5-1
Note: Other dimension and specification are available upon request.
Knowledge & Tips
Customer feedback:
%respond%
Tips:
Mega-9 supplies advanced narrow bandpass filter in large volumes or single-piece quantities for all requirements of spectral light measurement and control.
An optical filter, including a pair of Bragg grating units optically coupled to respective ports of a circulator, is provided for filtering a selected wavelength band of light from a DWDM input light. Each grating unit includes a respective tunable optical element, which have a reflective element, such as a Bragg grating. Generally, one grating unit filters a selected wavelength band of light and reflects the selected wavelength band to the other grating unit, which reflects a portion of the reflected wavelength band to an output of the optical filter. This double reflection of the selected wavelength band provides an optical filter having an effective filter function that is equal to the product of the individual filter functions of the grating units. To create a desired effective filter function, the gratings may be written to have different filter functions or grating profiles. One or both of the grating units may also be tunable to selectively create, tailor, shape or change the effective filter function of the optical filter in response to a control signal by offsetting the reflection wavelengths of the gratings, having different grating profiles.24. The optical filter of claim 22, wherein the first reflection wavelength and the second reflection wavelength are substantially aligned to reflect a portion of the aligned wavelength bands to an output port. 25. The optical filter of claim 22, wherein one of the first and second filter functions comprises one of a Gaussian, rectangular and ramp shape. 26. The optical filter of claim 22, wherein one of the first and second reflective elements is fully apodized and the other of the first and second reflective elements is partially apodized. 27. The optical filter of claim 22, wherein the first reflection wavelength is offset a predetermined spacing from the second reflection wavelength. 28. The optical filter of claim 22, wherein at least one of the first and second reflective elements includes a Bragg grating.
.
