Price:$100(FOB Shanghai)
Size:Ø25*6mm
CWL:440nm
FWHM:10nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0¡ã

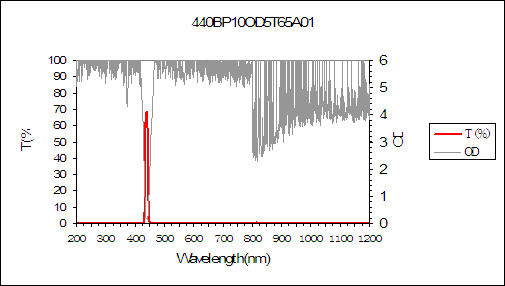

Center wavelength:440 nm
FWHM:10 nm
Tpeak: T>65% at 440 nm
Blocking: OD5-A What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B05-2-5
Note: Other dimension and specification are available upon request.
Customer feedback:
%respond%
Tips:
Mega-9 Optical supplies advanced narrow bandpass filter with high quality and fast delivery.
1. An optical filter comprising: a first optical element including a first reflective element for receiving light and reflecting a first wavelength band of the light centered at a first reflective wavelength, the first reflective element characterized by a first reflective filter function; and a second optical element, optically connected to the first a second optical element to receive the reflected first wavelength band of the light, including a second reflective element for reflecting a second wavelength band of the light centered at a second reflection wavelength, the second reflective element characterized by a second reflective filter function, whereby at least one of the first reflective filter function and the second reflective filter function is not substantially flat over a substantial portion of the respective first or second reflective filter function, and the first wavelength band and the second wavelength band overlap spectrally. 16. The optical filter of claim 1, wherein at least one of the first and second optical elements have an outer cladding and an inner core disposed therein, wherein the at least one of the first and second reflective element comprises a grating disposed in a longitudinal direction of the inner core. 17. The optical filter of claim 16, wherein the at least one of the first and second optical elements comprises: an optical fiber, having a reflective element written therein; and a tube, having the optical fiber and the reflective element encased therein along a longitudinal axis of the tube, the tube being fused to at least a portion of the fiber. 18. The optical filter of claim 16, wherein the at least one of the first and second optical elements is an optical waveguide having an outer transverse dimension of at least 0.3 mm. 19. The optical filter of claim 16, wherein the at least one of the first and second optical elements is an optical fiber. 20. The optical filter of claim 1 further includes a straining device for tensioning axially the first optical element to tune the first reflective element, wherein the first reflective element is disposed along an axial direction of the first optical element.
.
